Isuzu GIGA 6x4 truck 14T crane with direct sale

ナイジェリア向けいすゞGIGA 14Tクレーントラック

ザ Isuzu GIGA boom truck is equipped with Isuzu 6UZ1 engine , strong power of 380 HP, which can meet various work needs. The Isuzu GIGA 5X cab in have air suspension seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body is a t elescopic boom crane with a maximum lifting capacity of 14 000kg and a full 360° rotation.

労働能力:
14 tons
寸法（mm）:
11300×2580×3350 mm
ホイールベース（mm）:
4600+1370 mm
エンジン出力:
380HP
エンジンタイプ:
6UZ1-TCG60
車軸駆動:
6x4, LHD
ギアボックス:
Fast 12 shift
備考:
6X6, RHD drive type avaiable

今すぐお問い合わせください

Th e Isuzu GIGA boom truck is equipped with Isuzu 6UZ1 engine , strong power of 380 HP, which can meet various work needs. The Isuzu GIGA 5X cab in have air suspension seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body is a t elescopic boom crane with a maximum lifting capacity of 14 000kg and a full 360° rotation.

The crane weight is 357 0kg and the installation space is 21 50mm. The control panel can be selected in English or other languages to facilitate users with different needs. Isuzu GIGA cargo truck mounted 14tons crane also provides a variety of optional configurations, such as knuckle boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

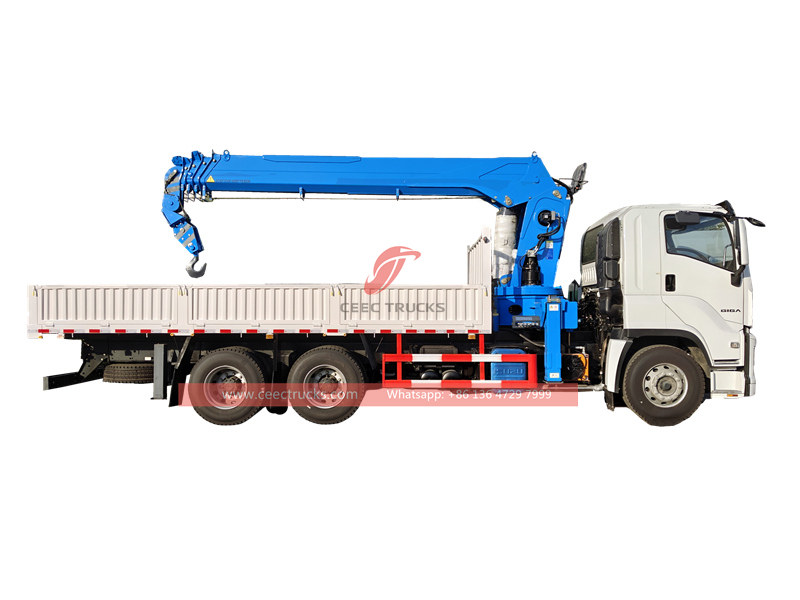

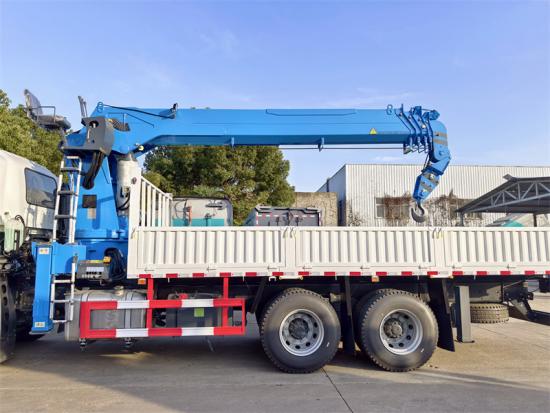

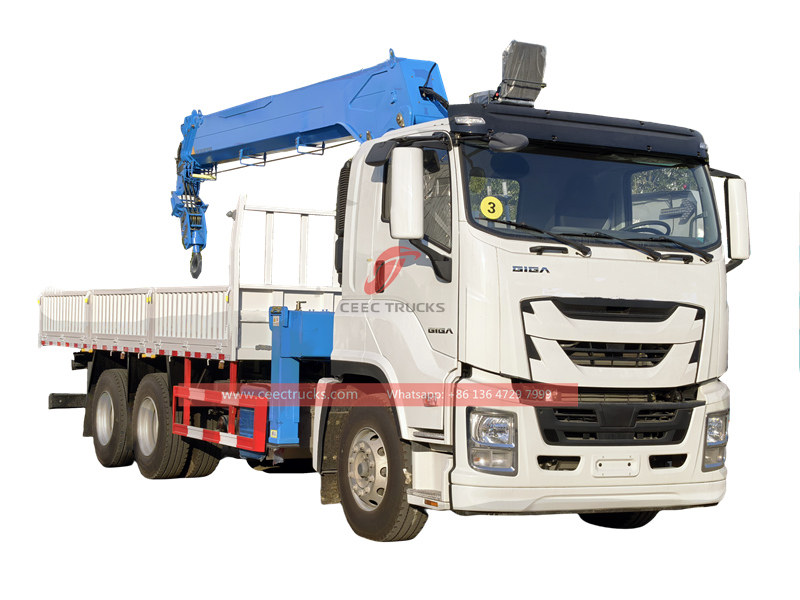

Isuzu GIGA cargo truck mounted 14 tons crane

* Isuzu GIGA 6x4 service truck 14ton crane

Isuzu GIGA 10wheeler boom crane truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Isuzu Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Isuzu truck chassis, 6x4,6X6 model

Isuzu 6UZ1 model with 380HP and emission 9.8L.

2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand : XCMG, Palfinger, HIAB, CEEC, etc.

4. Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

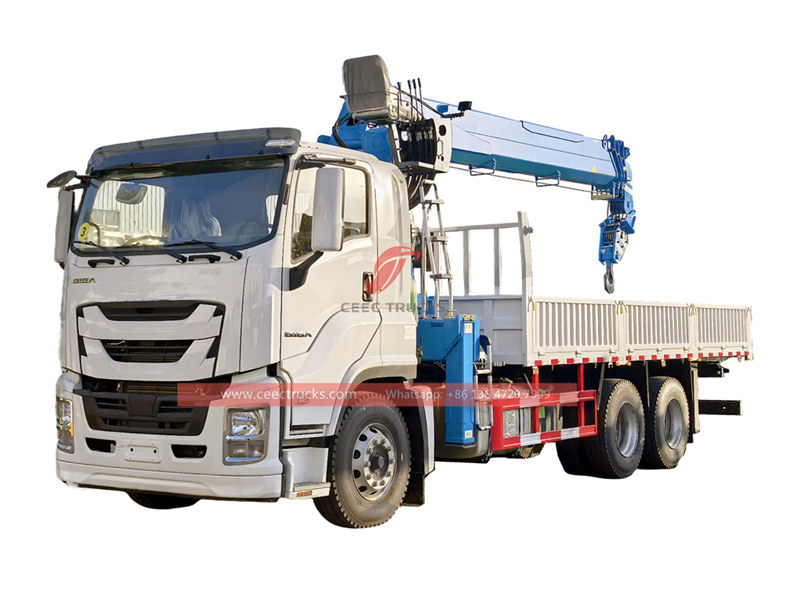

Isuzu GIGA cargo truck mounted 14 tons crane

The Isuzu GIGA 14ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements. Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.

✦ Product Parameter of Isuzu Crane Lorry Truck « « «

Isuzu GIGA cargo truck mounted 14 tons crane

Isuzu 6 × 4 Telescopic B oom C rane T ruck
Vehicle model		CEEC 5 2503GDC		Overall dimensions (mm)	113 00×2 58 0× 335 0
GVW (kg)		25 000		Operational height (m)	18.5m
Curb weight(kg)		113 00		Max. Speed (km/h)	95
Chassis Description
Chassis Brand			Isuzu GIGA chassis
Cab			Single cab with A/C
Allowable person in cab			3
Wheel base (mm)			4600+1370
Number of axles			3
Axle	Front axle (kg)		7 500
	Rear axle (kg)		130 00 *2
Traction system			6 * 4
Braking system			Air brake
Transmission			Fast 12 -speed
Tire specification			295/80R22.5
Tire quantity			10 +1
Engine Description
Engine manufacture			Isuzu
Engine model			Isuzu 6UZ1
Emission standard			Euro 6
Exhaust			9.8L
Horse power			380 HP
Upper Body Description
Max. working height (m)			18.5
Max. working radius (m)			20.5
Crane Type			Telescopic boom crane
Max Lifting Capacity			14 000 kg
Slewing Angle			360° All rotation
Rotation Angle			360° Hydraulic
Control panel			English or Your language
Cargo Box Dimension			63 *002 5 00500 mm*
Cargo Box Material			Q235 High-level Steel
Optional
Knuckle boom crane
Hydraulic tipper box
Box thickness according to requirement
Box height could be nominated
Remote Control Box optional

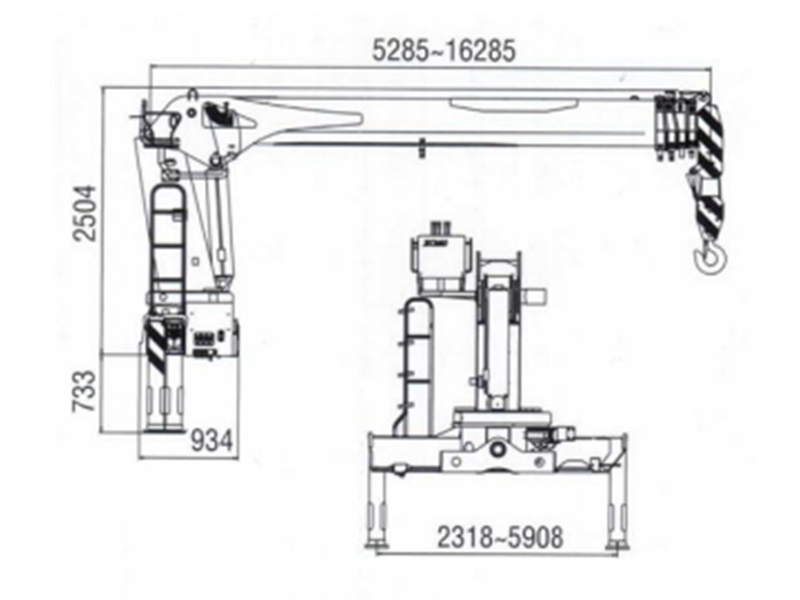

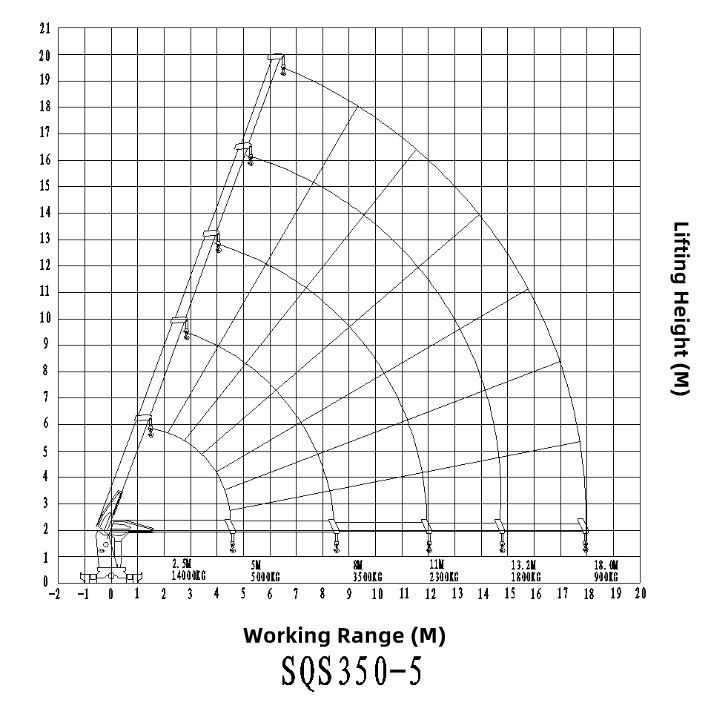

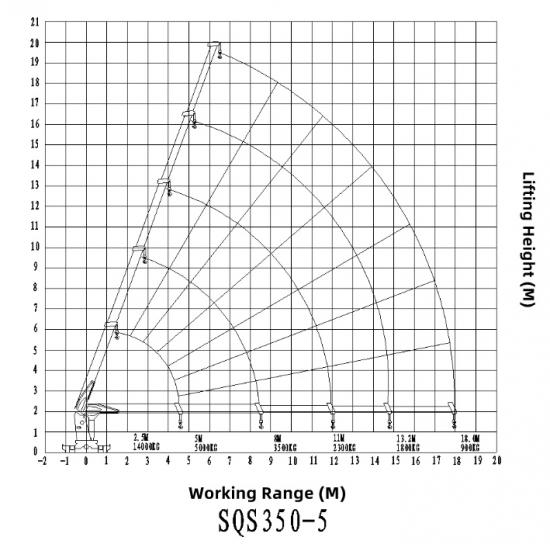

✦ Analysis diagram of Isuzu Boom Truck « « «

Crane R ated L ifting C apacity (Kg)	14000
Rated L ifting C apacity (T.m)	35
Max L ifting H eight (mm)	18.2
Number of C rane B oom S ections	5
Basic A rm C ross- S ection	H exagon
Rotation A ngle	360°
Leg S pan (fully retracted/fully extended) (m)	2.5/5.8
Recommendation S ystem T raffic (L/min)	63/40
System R ated P ressure (MPa)	22
Operation M ethod	Upper Seat O peration
Hydraulic Oil Tank	20 0L

✦ High load capacity and passability of Howo Boom Truck « « «

♦ The Isuzu 14 tons crane truck has a 6 x 4 drive system , high quality rear axle drive + front axle steering .

♦ R easonable axle load distribution, strong load capacity, usually 33 tons, suitable for heavy load transportation .

♦ E xcellent ability to escape from complex road conditions such as mud and ramps.

♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

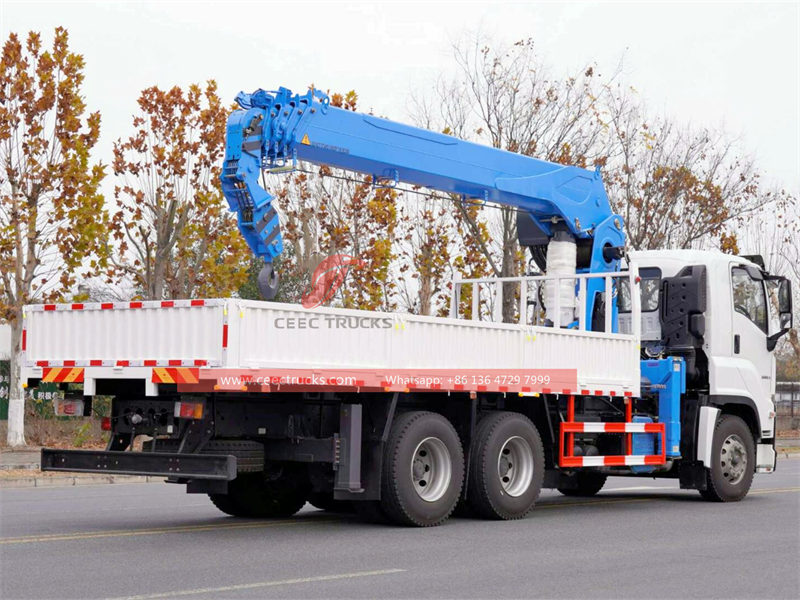

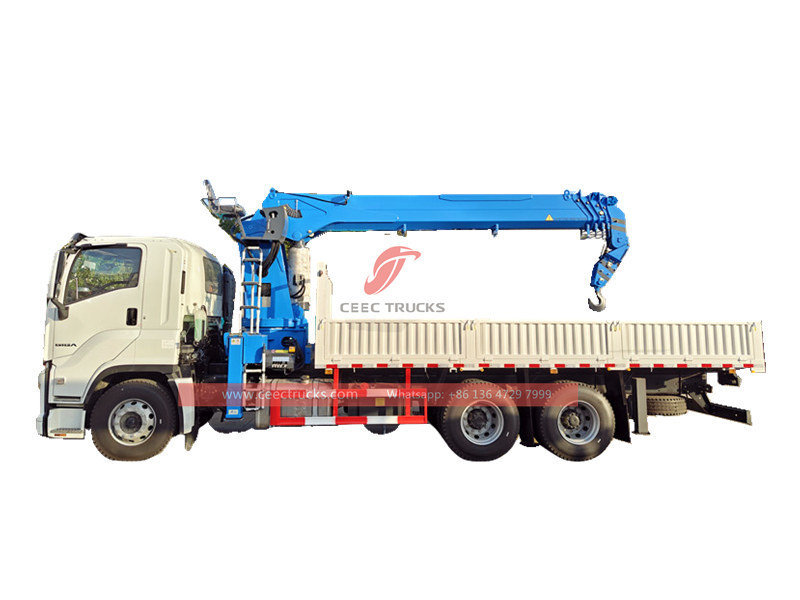

Isuzu GIGA cabin 6x4 crane truck

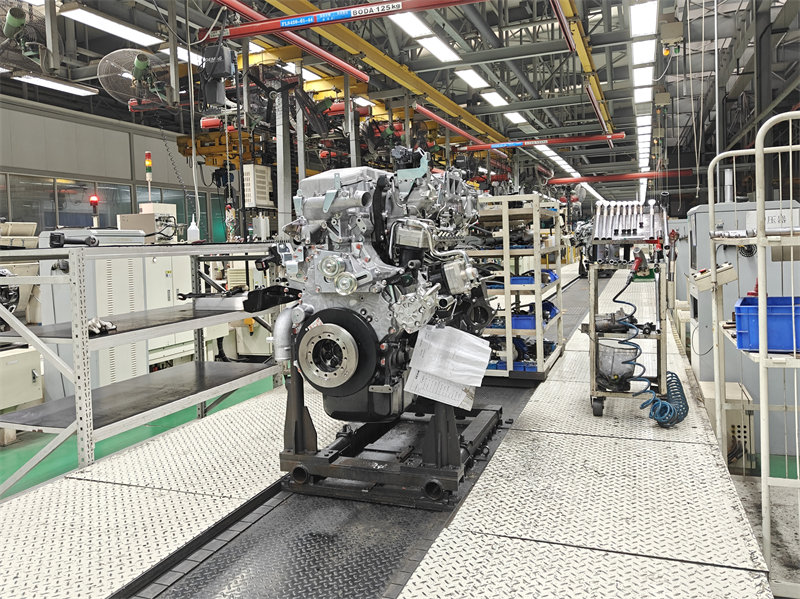

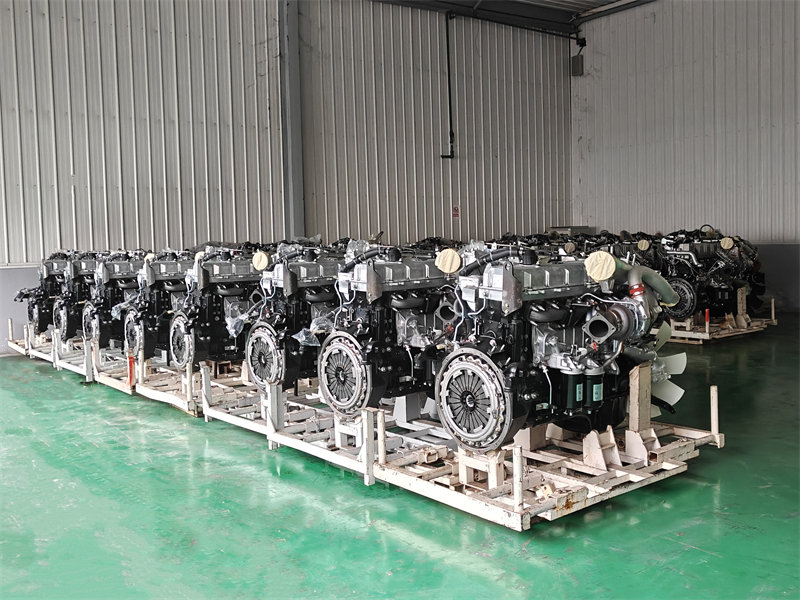

♦ Equipped with Isuzu technology engine ( 6UZ1 Series ) + Fast series gearbox + wheel reduction bridge .

♦ L ow speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.

♦ The Isuzu engine has a life of more than 800,000 kilometers .

♦ K ey parts (such as hydraulic pumps and crane slewing mechanisms) are top brands , with a low failure rate.

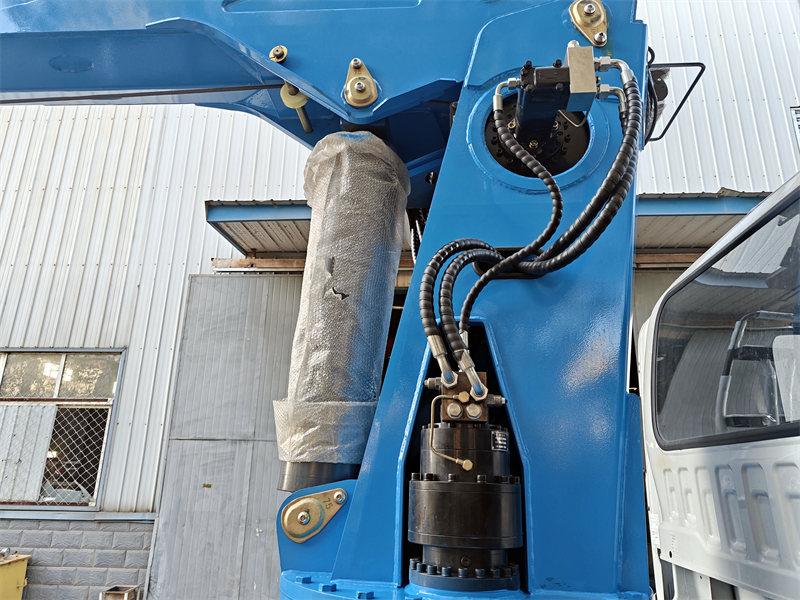

✦ Structural Strength and Stabili ty of Isuzu crane truck « « «

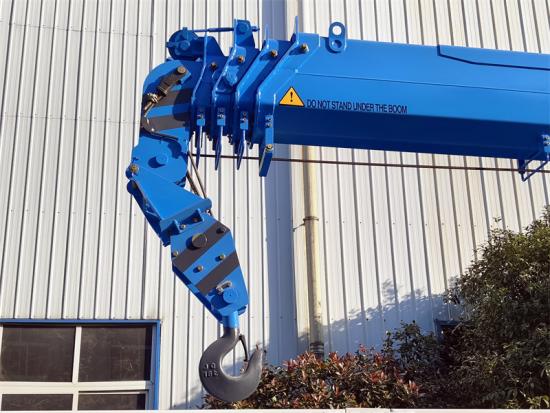

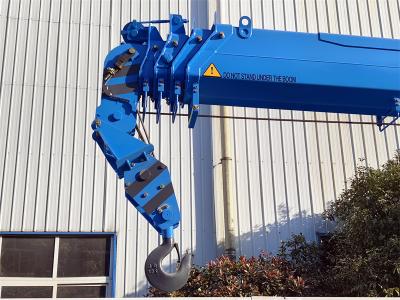

♦ The boom is made of high-strength steel with excellent bending and torsion resistance.

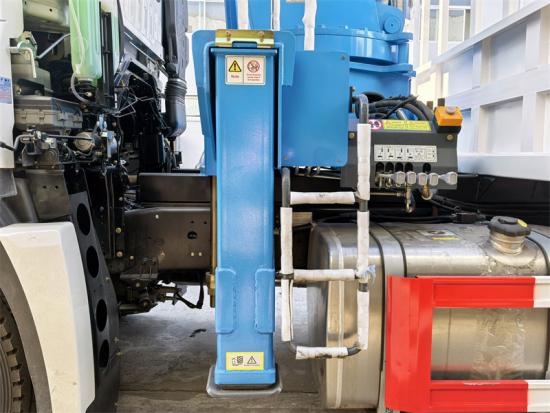

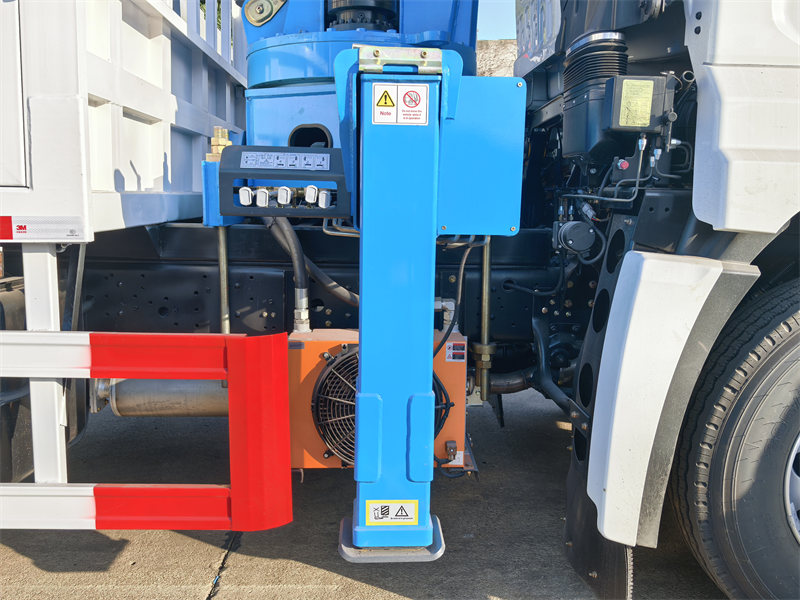

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable.

♦ The larger the support area, the stronger the anti-overturning ability.

Isuzu 10tons crane truck

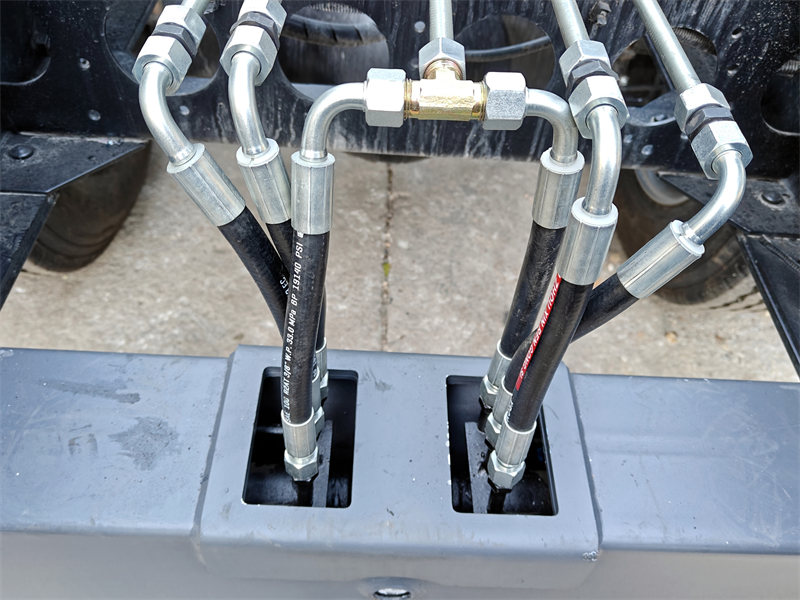

♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.

♦ Key valve (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.

♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments.

✦ Optional Equipment of Isuzu crane truck « « «

Due to the Isuzu 14 ton crane truck has a lifting height of up to 18.5 meters and a certain load-bearing capacity.The boom truck can combine it with various functional equipment to achieve multi-functionality and maximize the value of the crane truck.

Garbage Grabber
Wood Grabber
Lifting Electromagnetic Chuck

Planting Drill Bit
Secondary Hook
Manlift Bucket

✦ Application of Isuzu Boom Truck « « «

1. At construction sites for highways , bridges, and railways, the Isuzu 15 ton boom truck, with its heavy lifting capacity and long boom, can efficiently complete the on-site loading, unloading, and installation of precast concrete beams, large steel formwork, bored pile components, and heavy construction machinery.

2. In wind power, electric power,and mining industries, the Isuzu GIGA 15 ton boom truck serves as a mobile "heavy-duty maintenance station," capable of lifting large transformers, wind turbine components, and replacement parts for mining machinery.

3. In municipal engineering projects,the Isuzu GIGA 15 ton crane lorry truck can be used for lifting heavy drainage pipes, large sculptures, and ancient trees in gardens.

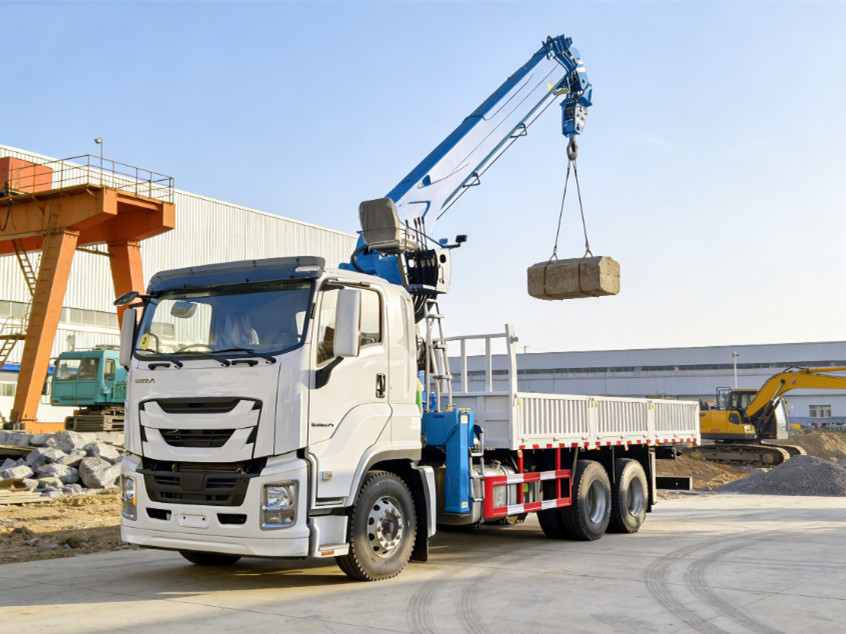

Isuzu GIGA 14 tons crane truck
