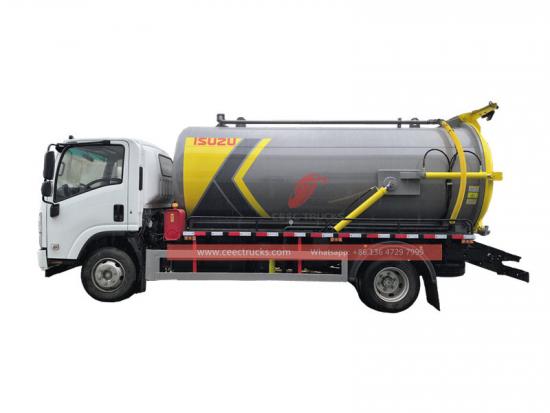

いすゞ 8,000L真空汚水タンク車

市町村衛生の分野では、 Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

支払い:
T/T, West Union
市場価格:
$29800
製品起源:
China CEEC
配送ポート:
China main port
リードタイム:
45 Days
労働能力:
8000L
寸法（mm）:
7300*2530*2950 mm
ホイールベース（mm）:
3815 mm
エンジン出力:
190 HP
エンジンタイプ:
4HK1-TCG61
車軸駆動:
4x2
ギアボックス:
MLD gearbox, manual, 6 gears forwards with 1 reverse
備考:
Jurop pump, Moro pump 4×4, RHD drive is optional

今すぐお問い合わせください

市町村衛生の分野では、 Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

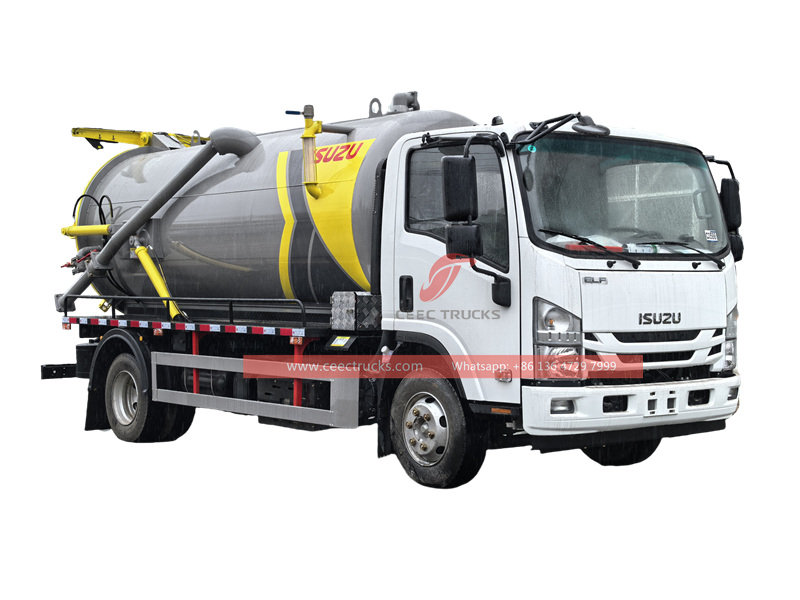

Howo 4x2 sewage tank truck

✦ Product Introduction of Isuzu Sewage Tank Truck « « «

Manufacturer: CEEC TRUCKS GROUP

Product Features:

☛ Isuzu light 4x2 chassis with stronger power 4HK1 190HP engine.

☛ Suctioning,displacing(option),transporting and discharging dry,wet and hazardous substances, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.

☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.

☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

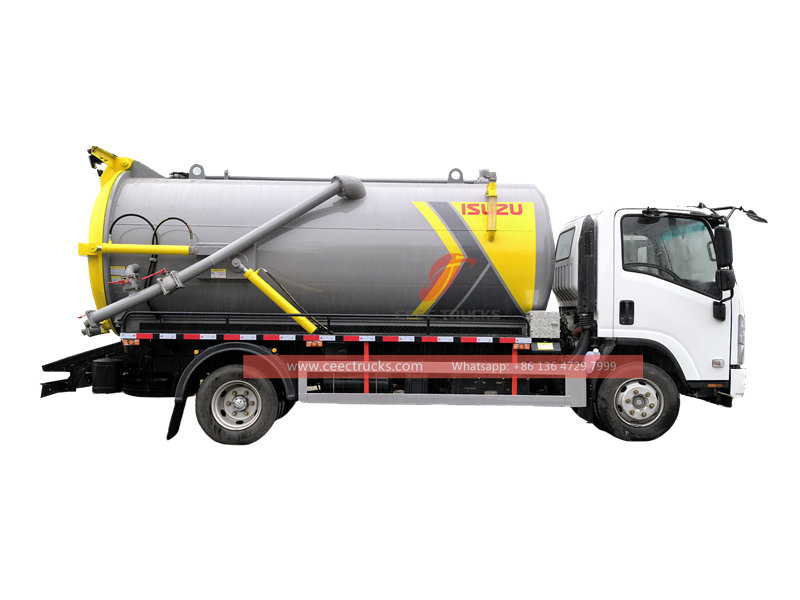

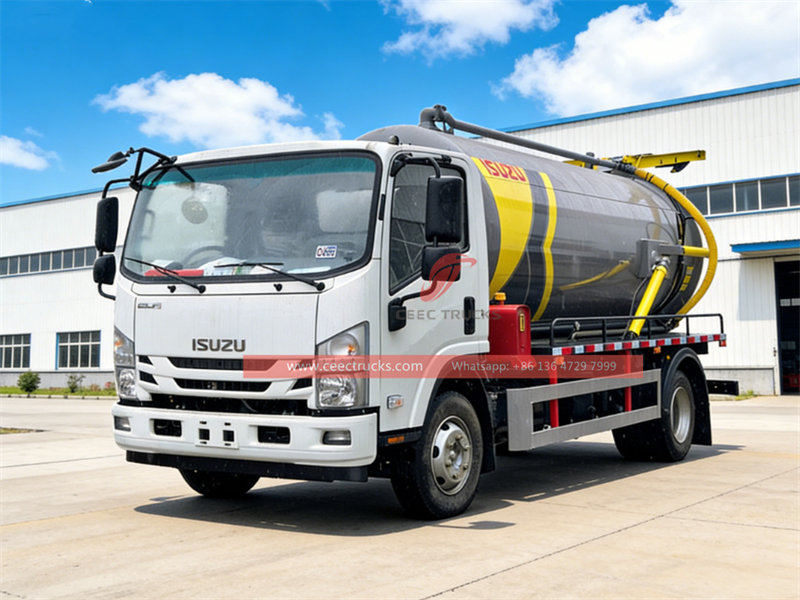

Howo 4x2 light sewage tank truck

✦ Product Parameter of Isuzu Vacuum Sewer Truck « « «

Howo 4x2 light sewage tank truck

Isuzu 8000L vacuum sewage truck
Vehicle Description
Overall dimensions	73 002 53 0 29 50mm
GVW	180 00kg
Curb weight	9350 kg
Sewage tank (m3)	8
Drive system	4 * 2
Chassis Description
Chassis brand	Isuzu
Steering	LHD
Cab	Howo ,single row, 2 seats,with A/C
Wheelbase	3815 mm
Tire specification	235/75 R 17.5
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	4HK1
	Emission level	EURO 6
	Displacement	5.2 L
	Horse power	190 HP
	Weight	960 Kg
	Fuel	Diesel
Gear box	Model	Isuzu MLD
	Number of gears	6 speed
Brake system	Air break
Axle	Front	3 . 5 T
	Rear	8 T
Fuel tanker	Type	Steel
	Capacity	100 L
Tanker Description
Tanker	Capacity	8 000 Liters
	Material	6 mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	4 8(L/S)
	Rating speed	7 00~ 9 00(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Italy vacuum pumps. Anti rust coating inside tank

Howo sewage tank truck

✦ Key Component: Sewage Pump « « «

1. SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of SK pumps , are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

Specification	Unit	Value
Free air capacity	cfm	435
Air capacity at 15" Hg/50% vacuum	cfm	489
Max. Vacuum	Hg (in.)	2 4
Max. Pressure	psig	2 3
Power required at 15" of vacuum	hp	15
Power required at max. pressure	hp a	25
Max. speed	rpm	9 00
Working speed	rpm	7 00
Oil tank capacity	lt	4.8
Oil consumption	Gr/h	19 0
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	70
Hose	in	3/4
Flange	in	-
Weight	lbs	486

✦ Paint Anti-Corrosion Process « « «

♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating) .

♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.

♦ S andblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.

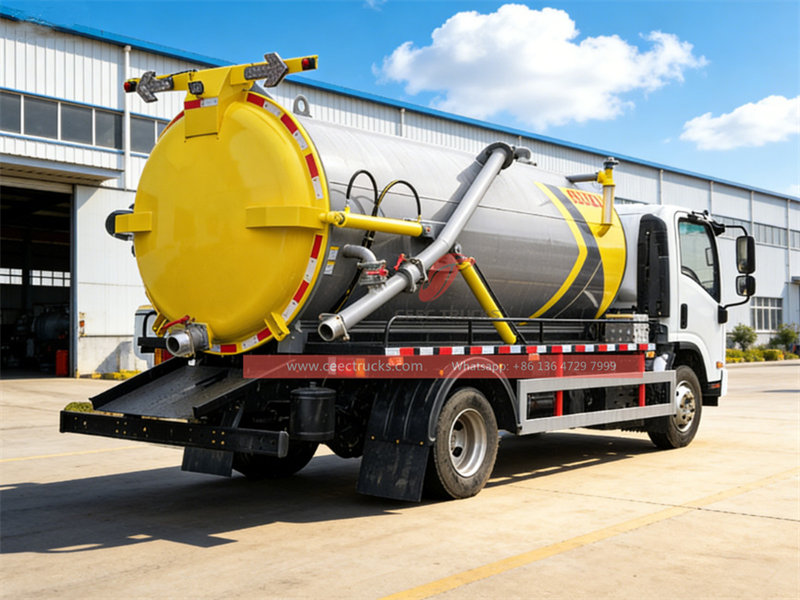

Isuzu light vacuum sewage tank truck

✦ Tank Sealing Of Isuzu Light Sewage Tanker « « «

♦ T he tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.

♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.

♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).

♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.

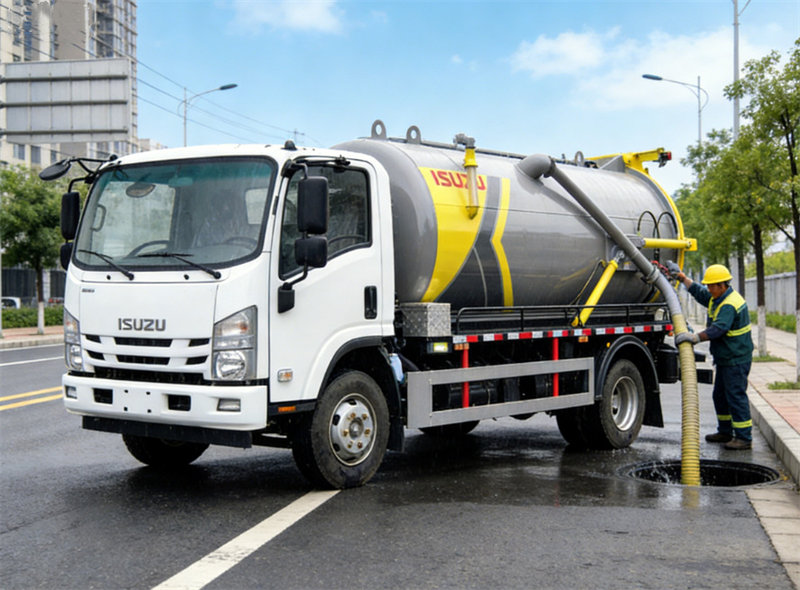

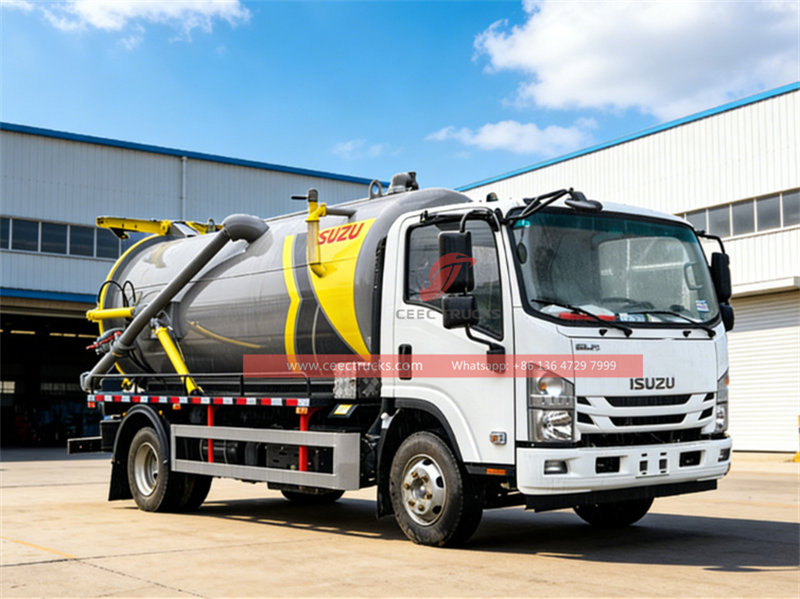

Isuzu vacuum sewage tank truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5. promptly delivery. any order is welcome.

We CEEC TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

★ユーロ6タイプ、エンジン超パワフル

★ Vacuum pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu sewage suction trucks exporter

★ Training service for Isuzu sewer cleaner trucks

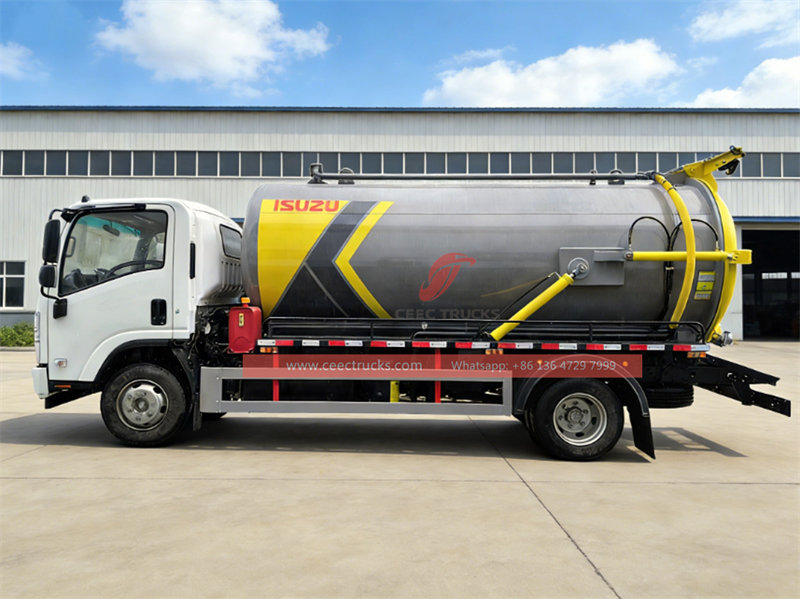

Isuzu vacuum sewage tank truck

CEEC TRUCKSは、中国におけるHOWO社製真空吸引車の大手輸出業者です。10年以上の真空吸引車の輸出実績を有し、下水管清掃車については迅速な納期と12ヶ月の保証をお約束します。当社の真空タンクローリーは、東欧・CIS諸国、アフリカ、東南アジア、中南米、中東など、80カ国以上に販売されています。
